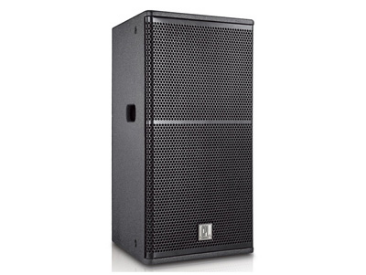

X150

X150是一款2分頻的設計的全頻音箱，使用1只15寸的低頻喇叭單元和1只3寸高音喇叭單元組成。

Scope of application適用范圍：

流動演出、體育場館、劇場、禮堂、多功能廳等高水準聲音重放要求的場所。

Technology Parameters音箱技術參數：

Drivers單元組成:                         LF低頻:1x15”Voice-coil

                                          HF高頻:1x3”Voice-coil

Frequency頻率響應（-3dB）:               55-20000  hz赫茲

Dispersion覆蓋角度（-6dB）:               90 °（h水平）×50°（v垂直）

Sensitivity靈敏度:                       105db/1瓦.1米

MaximumSPL聲壓級輸出:                     136db/aes連續；139db/peak峰值

Nominal  Impedance標準阻抗:               8Ω

Rated  Power輸入功率:                      575w（aes額定）/1500w（peak峰值）

Recommended  AMP功放功率要求:              1100 - 2000W  8Ω

Crossover  Frequency分頻點:                1500hz

Finish表面處理:                           黑色環保水性耐磨油漆涂裝

                                         Environmentally  friendly water-based

                                         wear-resistant  black paint

Connectors輸入連接器:                     2×Speakon NL4MP

Handing  Position吊裝:                    自身多點螺絲承重吊掛

                                         multi-screw  bearing hanging

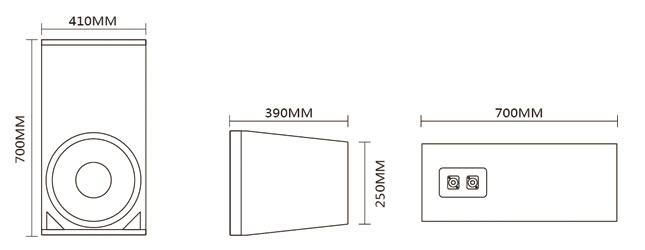

Dimensions外形尺寸（h高×w寬×d深）:      700mm×410mm×390mm

Net  Weight凈重:       26kg
