X60

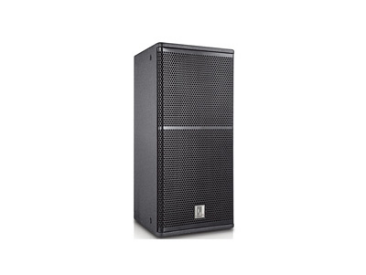

X60是一款2分頻的設計的中高音線性陣列音箱，使用1只8寸的低頻喇叭單元和1只1寸高音喇叭單元組成。

Scope of application適用范圍：

流動演出、體育場館、劇場、禮堂、多功能廳等高水準聲音重放要求的場所。

Technology Parameters音箱技術參數：

Drivers單元組成:                           LF低頻:1x8”Voice-coil

                                           HF高頻:1x1”Voice-coil

Frequency頻率響應（-3dB）:                 60-20000 hz赫茲

Dispersion覆蓋角度（-6dB）:                90 °（h水平）×50 °（v垂直）

Sensitivity靈敏度:                        98db

MaximumSPL聲壓級輸出:                     124db/aes連續；127db/peak峰值

Nominal  Impedance標準阻抗:                 8Ω 歐姆

Rated  Power輸入功率:                       275w（aes額定）/600w（peak峰值）

Recommended  AMP功放功率要求:               500 - 800W 8Ω

Crossover  Frequency分頻點:                 2000hz 赫茲

Finish表面處理:                           黑色環保水性耐磨油漆涂裝

                                           Environmentally friendly water-based

                                          wear-resistant  black paint

Connectors輸入連接器:                      2×Speakon NL4MP

Handing  Position吊裝:                     自身多點螺絲承重吊掛

                                          multi-screw  bearing hanging

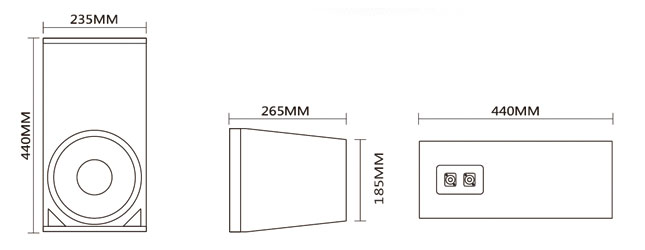

Dimensions外形尺寸（h高×w寬×d深）:       440mm×235mm×265mm

Net  Weight凈重:       11kg
