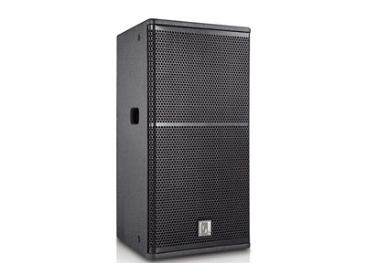

X120

X120是一款2分頻的設計的中高音線性陣列音箱，使用1只12寸的低頻喇叭單元和1只2寸高音喇叭單元組成。

Scope of application適用范圍：

流動演出、體育場館、劇場、禮堂、多功能廳等高水準聲音重放要求的場所。

Technology Parameters音箱技術參數：

Drivers單元組成:                          MF中低頻: 1x12”Voice-coil

                                          HF高頻:1x2”Voice-coil

Frequency頻率響應（-3dB）:               56-20000  hz赫茲

Dispersion覆蓋角度（-6dB）:              90  °（h水平）×50°（v垂直）

Sensitivity靈敏度:                       102db/1瓦.1米

MaximumSPL聲壓級輸出:                     130db/aes連續；137db/peak峰值

Nominal  Impedance標準阻抗:                8Ω

Rated  Power輸入功率:                      475w（aes額定）/1300w（peak峰值）

Recommended  AMP功放功率要求:             1100  - 2000W 8Ω

Crossover  Frequency分頻點:                1500hz 赫茲

Finish表面處理:                          黑色環保水性耐磨油漆涂裝

                                         Environmentally  friendly water-based

                                          wear-resistant black paint

Connectors輸入連接器:                     2×Speakon NL4MP

Handing  Position吊裝:                     自身多點螺絲承重吊掛

                                         multi-screw  bearing hanging

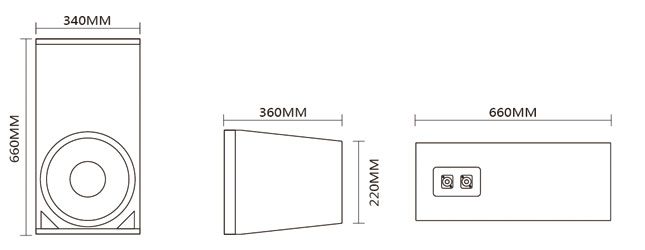

Dimensions外形尺寸（h高×w寬×d深）:      660mm×340mm×360mm

Net  Weight凈重:      25kg
